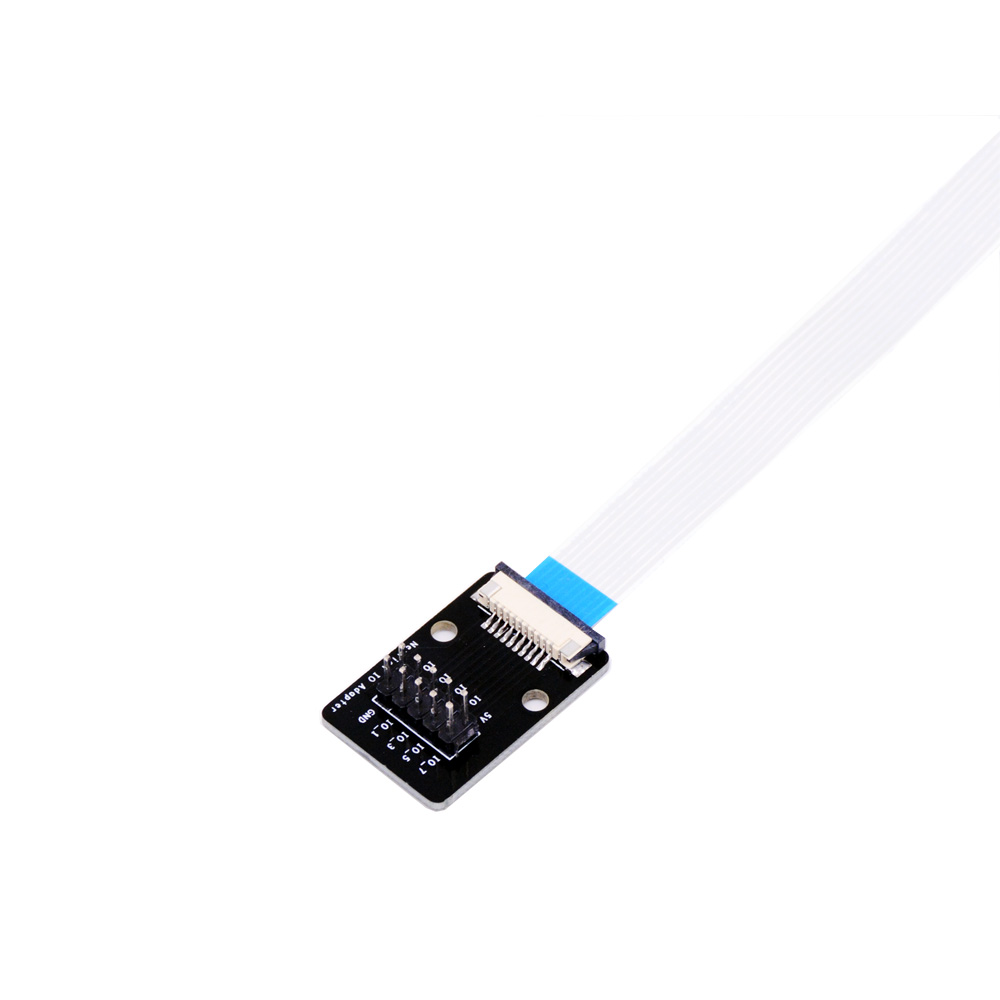

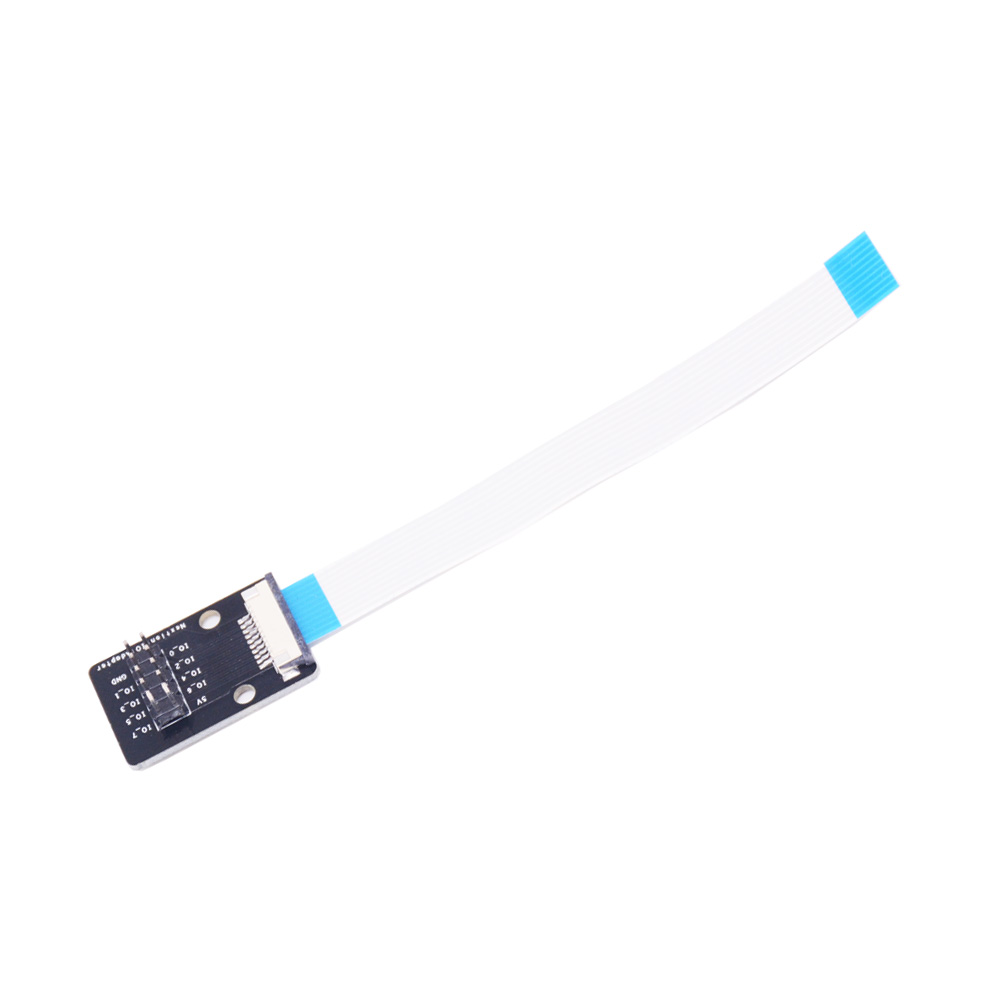

Nextion IO Adapter
The Nextion IO Adapter is made specially to work with Nextion Enhanced HMI Display Series which covers standard 2.4″, 2.8″, 3.2″, 3.5″, 4.3″, 5.0″, 7.0″ The small board allows Nextion Enhanced display users to have extended IO to connect with external devices
₹265.00 ₹1,000.00 Excluding GST
Overview
The Nextion IO Adapter is made specially to work with Nextion Enhanced HMI Display Series.

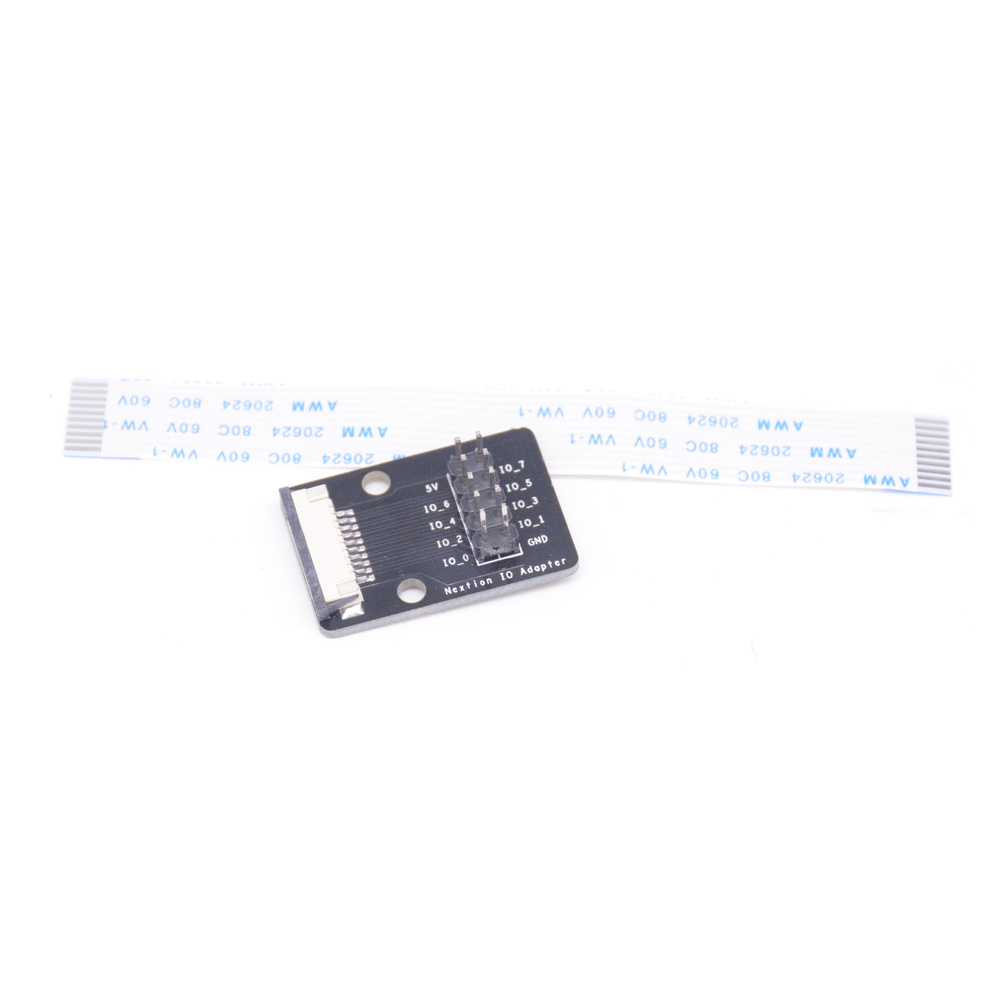

The small board pins out GPIOs of Nextion Enhanced display to 2.54 inch headers, which allow users to access the GPIOs more conveniently.
ADDITIONAL INFORMATION
| Discontinued | No |
| Link Wiki | No |
| EWeLink Support | No |
| Module Type | No |
| Weight | 10 g |
| Model | IM161123001 |
| Board Size | 3cm*2cm |
| Version | 1 |
| Operation Level | Digital 5V |
| Weight | 0.01 kg |
|---|---|
| brands | NEXTION |
| Discontinued | No |
| Link Wiki | No |
| EWeLink Support | No |
| Module Type | No |
| Weight | 10 g |
| Model | IM161123001 |
| Board Size | 3cm*2cm |
| Version | 1 |
| Operation Level | Digital 5V |
Based on 0 reviews
